| Place of Origin: | China |
|---|---|
| Certification: | CE |
| Minimum Order Quantity: | 1 roll |
| Price: | USD10/PC |
| Packaging Details: | Pallet |
| Delivery Time: | 3 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 PCS/days |
| Material: | Stainless Steel Wire,ss201 304 316 Or 316L Wire | Type: | Wire Cloth |
|---|---|---|---|
| Application: | Protecting Mesh | Technique: | Expanded Metal |
| Weave Style: | Expanded Metal | Wire Diameter: | Requirement |
| Width: | Cunstomized | Product Name: | SS 304 Expanded Metal |
| Length: | Can Be Customized | Feature: | Corrosion Resistance |
| Usage: | Protection | Color: | Silver |
| Surface Treatment: | Hot Dip Glvanized; Galvanized+PVC Coated | Aperture: | Requirement |
| Packing: | Pallet | Mesh: | 304 316L Stainless Steel Wire Mesh |
| Name: | Metal Rib Lath Building Material Construction | Wire Gauge: | 0.4-2.0mm |
| High Light: | ss201 metal rib lath,0.4mm metal rib lath,hdg rib lath mesh |
||

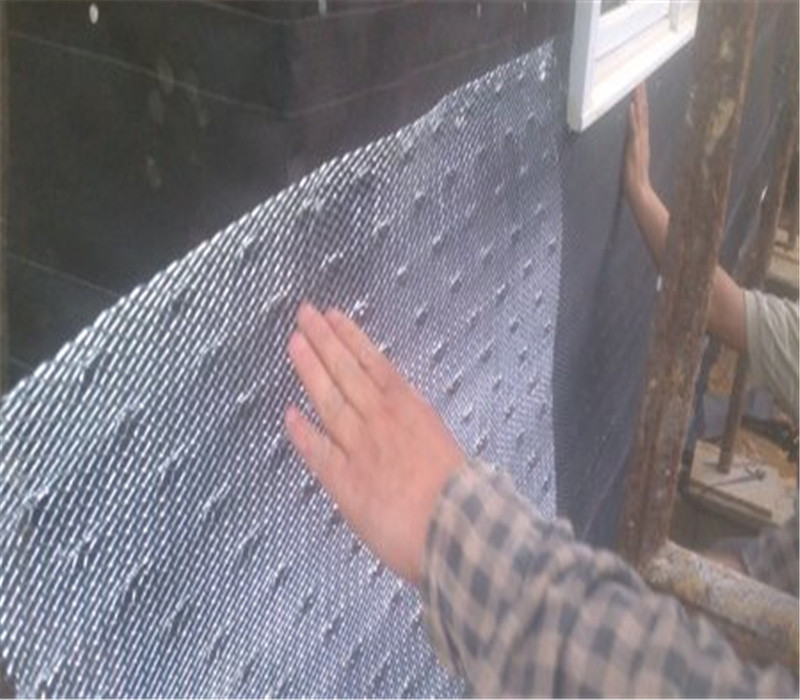

Rib Lath is a versatile metal lath stiffened by the longitudinal ribs. It has V ribs and greater tensile strength which offering excellent plaster base and reinforcement for all types of walls,ceilings,partitions and fireproofing of steel beam,and columns.
Rib lath is ideal for proving a high degree key of mechanical bonding with render or plaster.
1. 7 Rib 8 Opening
| 7 Rib 8 Opening | |||
| Thickness(mm) | Rib Distance(mm) | Weight (KG) | Width X Length(mm) |
| 0.10 | 100 | 1.79 | 610 X 2440 |
| 0.35 | 100 | 2.09 | 610 X 2440 |
| 0.40 | 100 | 2.38 | 610 X 2440 |
| 0.45 | 100 | 2.68 | 610 X 2440 |
| 0.5 | 100 | 2.98 | 610 X 2440 |
2. 5 Rib 8 Opening
| 5 Rib 8 Opening | |||
| Thickness(mm) | Rib Distance(mm) | Weight (KG) | Width X Length(mm) |
| 0.10 | 150 | 1.31 | 610 X 2440 |
| 0.35 | 150 | 1.53 | 610 X 2440 |
| 0.40 | 150 | 1.75 | 610 X 2440 |
| 0.45 | 150 | 1.96 | 610 X 2440 |
| 0.5 | 150 | 2.17 | 610 X 2440 |
3. 9 Rib 4 Opening
| 9 Rib 4 Opening | |||
| Thickness(mm) | Rib Distance(mm) | Weight (KG) | Width X length(mm) |
| 0.10 | 75 | 1.89 | 610 X 2440 |
| 0.35 | 75 | 2.28 | 610 X 2440 |
| 0.40 | 75 | 2.53 | 610 X 2440 |
| 0.45 | 75 | 2.84 | 610 X 2440 |
| 0.5 | 75 | 3.15 | 610 X 2440 |
1. Hy Rib Lath (high ribbed lath/high ribbed from work)
Specification:
| Thickness (mm) | Weight (kg) | Width (mm) | Length (mm) | Rib Height (mm) | Rib Distance(mm) |
| 0.21 | 1.70 | 450 | 2200 | 14-20 | 90 |
| 0.23 | 1.90 | 450 | 2200 | 14-20 | 90 |
| 0.10 | 2.48 | 450 | 2200 | 14-20 | 90 |
| 0.35 | 2.90 | 450 | 2200 | 14-20 | 90 |
| 0.40 | 3.10 | 450 | 2200 | 14-20 | 90 |
| 0.45 | 3.70 | 450 | 2200 | 14-20 | 90 |
| 0.50 | 4.10 | 450 | 2200 | 14-20 | 90 |
Application
