| Place of Origin: | China |
|---|---|
| Certification: | SGS |
| Minimum Order Quantity: | 1square meter |
| Price: | Discuss |
| Packaging Details: | the packing of the welded wire mesh panel is plastic & pallet or according to customer's requirements |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000000 square meters |
| Material: | Ss201 304 316 Or 316L Wire | Type: | Welded Mesh |
|---|---|---|---|
| Application: | Fencing Mesh | Hole Shape: | Square Hole |
| Width: | 1m | Length: | 30m,Can Be Customized |
| Feature: | Corrosion Resistance,Easily Assembled,Heat Resistance,Acid Resistance | Usage: | Protection,Industry,Barbeque Baking,breeding |
| Color: | Silver | Aperture: | 1/2inch 1inch |
| High Light: | 27" Stainless Welded Wire Mesh,14 Gauge Stainless Welded Wire Mesh,14 Gauge Rabbit Cage Wire |
||

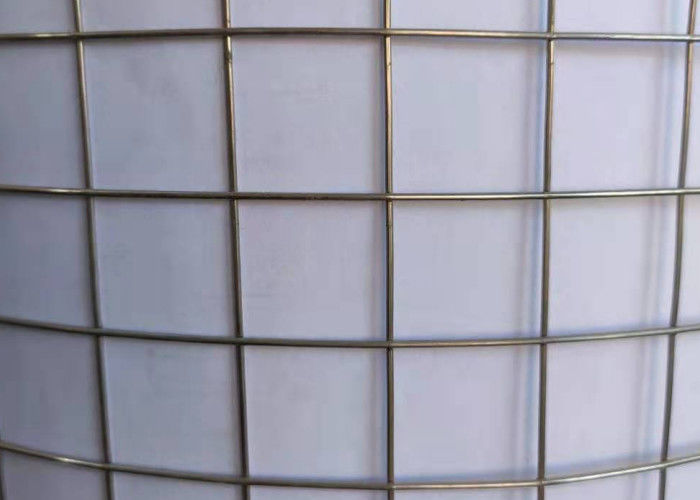

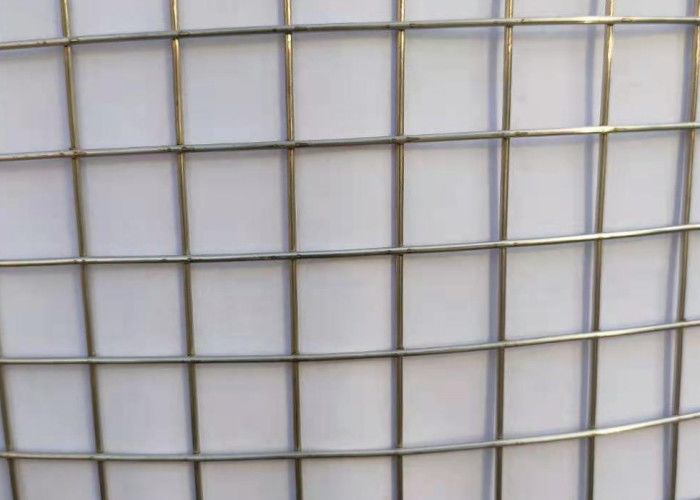

Stainless steel welded wire mesh is processed by projection welding,which results in the welded wire mesh surface much flat,no rusty,long life time,uniform opening,much more stable and anti-corrosion.
Product description
Material about welded wire mesh
This kind of stainless steel wire mesh is made with plain steel wire welded together in square opening, then going through the hot dipped zinc coating process.
Application: Suitable product for constructing animal cages, enclosure works, fabricating of wire containers and baskets, grills, partitions, machine protection fences, gratings and other construction applications.
6 x 6(1/4inch)mm square hole - Mouse protection
13 x 13(1/2inch)mm square hole - Fruit cages, bird protection, engineering uses
13 x 25(1/2*1inch)mm square hole - Bird protection, enclosures for small animals
20 x 20(3/4inch)mm square hole - Rat and squirrel protection
25 x 25(1inch)mm squarehole - Fox protection, cat and dog enclosures
50 x 50(2inch)mm square hole - Fox protection, dog enclosures
| Material | SS201,SS304,SS316,SS316L |
| Wire diameter | 0.6-8mm |
| Hole size | 1/2inch,1inch,3/8inch,3/4inch,2inch |
| Width | 1m,1.2m,1.5m,1.8m,2m,or as your request |
| Length | usually it is 30,or as your request |
| Packing | waterproof paper or at your request |
| MOQ | 1 square meter |
| Delivery | if it is in stock,3days will delivery |
| Certification | SGS |
| Application | Welded wire mesh are widely used in construction reinforcent, the ground gor the tunnels, bridges, highway,airport and wharf, also in construction of wall body. |
|
Specification List of Welded Wire Mesh
|
||
|
Opening
|
Wire Diameter(BWG)
|
|
|
In inch
|
In metric unit(mm)
|
|
|
1/4" x 1/4"
|
6.4mm x 6.4mm
|
22,23,24
|
|
3/8" x 3/8"
|
10.6mm x 10.6mm
|
19,20,21,22
|
|
1/2" x 1/2"
|
12.7mm x 12.7mm
|
16,17,18,19,20,21,22,23
|
|
5/8" x 5/8"
|
16mm x 16mm
|
18,19,20,21
|
|
3/4" x 3/4"
|
19.1mm x 19.1mm
|
16,17,18,19,20,21
|
|
1" x 1/2"
|
25.4mm x 12.7mm
|
16,17,18,19,20,21
|
|
1-1/2" x 1-1/2"
|
38mm x 38mm
|
14,15,16,17,18,19
|
|
1" x 2"
|
25.4mm x 50.8mm
|
14,15,16
|
|
2" x 2"
|
50.8mm x 50.8mm
|
12,13,14,15,16
|
|
Technical Note:
1,Standard roll length: 30m;width: 0.5m to2m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request. |
||
Product process
Our automatic welding machines can set up any mesh sizes in the market, no matter it's standard type or special requirement;
The fully digital controlled techniques and well-trained staff can ensure the even mesh size and the accurate dimensions of panels.
Application
1.Guarding
2.Railings
3.Architectural
4.Ceiling Tiles
5.Partition Systems
6.Farm
Product show
Company profile
FAQ
Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize in
different styles, and sizes in different brands, we also customize packaging box as per your requirements.
Q:What’s the MOQ?
A: MOQ is 10Rolls for standardized products; for customized products, MOQ should be negotiated
in advance. There is no MOQ for sample orders.
Q:How long is the lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 10-25 days.
Q:How to place orders?
A: 1. Email us the model, brand and quantity, consignee information, shipping way andpayment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
