1220x2440mm Stainless Steel Perforated Metal Sheet Anodized AISI Standard

Basic Information
Place of Origin: China
Certification: SGS
Minimum Order Quantity: 1 Square meter
Price: Negotiation
Packaging Details: Waterproof Wooden Pallet,Standard Export Package,Or As Customer's Requirement
Delivery Time: 5-8days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 square meter/3days
Detail Information
Application: Construction,Decoration,Screen,high Temperature Applications,etc Type: Perforated Mesh
Width: 1000-1500mm Or As Request Technique: Perforated
Length: 1~12m Or As Required Grade: 300 Series,200 Series,304,904L,201
Standard: AISI Material: Stainless Steel Wire,aluminum,copper,steel
Thickness: 0.1mm-300mm Or As Required Color: Natural Color
Feature: Corrosion Resistance
High Light:

1220*2440mm Stainless Steel Perforated Metal Sheet


Anodized Stainless Steel Perforated Metal Sheet


1220*2440mm stainless perforated sheet

Product Description

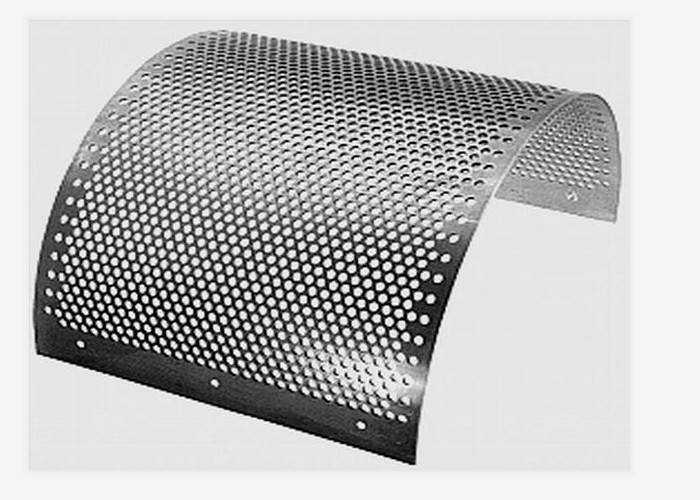

Stainless Steel Punched Metal Screens/ perforated metal screen sheet




Perforated Metal is broadly used in Industrial and Architectural applications such as; oil filters,

grain sifters, sound isolation and ventilation.

The round hole perforation is the most popular type of perforated pattern. We can cut to size to

your specific requirements.

Perforated metal is descibed by the hole size and the pitch. The pitch is the distance from the

centre of one hole to the centre of the adjacent holes. All our perforated sheets are on a

triangular pitch.

Perforated sheets are very useful for guarding and ballustrading where a strong smooth finish is

required with a small apeture.

Product name Perforated metal (also known as perforated sheet, stamping plates, or perforated screen)
Material Steel, Aluminium,Stainless steel, Bronze, Brass, Titanium, and so on.
Thickness 0.3-12.0mm
Hole shape

round, square, diamond,rectangular perforations,octagonal cane,grecian,

plum blossom etc,can be made as your design.

Mesh size 1220*2440mm,1200*2400mm,1000*2000mm or customized
Surface treatment

1.PVC coated

2.Powder coated



5.Fluorocarbon spraying



1.Aerospace: nacelles, fuel filters, air filters

2.Appliances: dish washer strainers, microwave screens, dryer and washer drums, cylinders for gas burners, water heaters and heat pumps, flame arrestors

3.Architectural: stairs, ceilings, walls, floors, shades, decorative, sound absorption

4.Audio Equipment: speaker grills

5.Automotive: fuel filters, speakers, diffusers, muffler guards, protective radiator grills

6.Food Processing: trays, pans, strainers, extruders

7.Furniture: benches, chairs, shelves

8.Filtration: filter screens, filter tubes, strainers for air gas and fluids, dewatering filters

9.Hammer mill: screens for sizing and separating

10.HVAC: enclosures, noise reduction, grilles, diffusers, ventilation

11.Industrial equipment: conveyors, dryers, heat dispersion, guards, diffusers, EMI/RFI protection

12.Lighting: fixtures

13.Medical: trays, pans, cabinets, racks

14.Pollution control: filters, separators

15.Power generation: intake and exhaust manifold silencers

16.Mining: screens

17.Retail: displays, shelving

18.Security: screens, walls, doors, ceilings, guards

19.Ships: filters, guards

20.Sugar processing: centrifuge screens, mud filter screens, backing screens, filter leaves, screens for dewatering and desanding, diffuser drainage plates

21.Textile: heat setting


1.can be formed easily

2.can be paint or polished

3.easy installation

4.attractive appearance

5.wide range of thicknesses available

6.largest selection of hole size patterns and configurations

7.uniform sound abatement

8.light weight


10.superior abrasion resistance

11.accuracy of size


1.On pallet with waterproof cloth

2.In wooden case with waterproof paper

3.In carton box

4.In roll with woven bag

5.In bulk or In bundle
