Mill Grade Stainless Steel Wedge Wire Screen , Aisi Wire Screen Filter

Basic Information
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 5 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500PCS/day
Detail Information
Name: Mill Grade Aisi 304 316 Stainless Steel Wedge Wire Screen Filter For Pump Equipment Warranty: 6 Months
Thickness: 3-12mm Width: Wthin 6M
Length: 6m Slot: 0.02-0.3mm
Place Of Origin: Hebei, China Usage: Liquid And Solid Filtration
Type: Filter Elements Hole Shape: V Shapped
Surface Wire: Profile Wedge Wire Application: Liquid And Solid Filtration
Support Rod: Square Wire, V Wire, Round Wire Frame: According To Requirement
Surface Treatment: Polished
High Light:

Mill Grade Stainless Steel Wedge Wire Screen

,

Aisi Wire Screen Filter

,

Mill Grade Wire Screen Filter


Product Description

Mill grade Aisi 304 316 stainless steel wedge wire screen filter for pump equipment





Stainless Steel Wire Wraped Slot Screen Wedge Wire Mesh, Stainless Steel Slot Screen Sieve Panel For Paper and Pulp, The stainless steel v wire screen plate is a mechanical self-cleaning device that was developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from mixed liquid streams. The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance.

Features

1. High efficiency and high performance
2. Easy to move and install
3. Easy and convenient operation
4. Strong body



Material SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
Length Range Up to 6000mm
Width Range Up to 6000mm
Slot Range 20 micron to 3000 micron (Tolerance:+-5 micron)
Other Shapes Could cut to any shape according to requirement, such as round, semicircle, sector

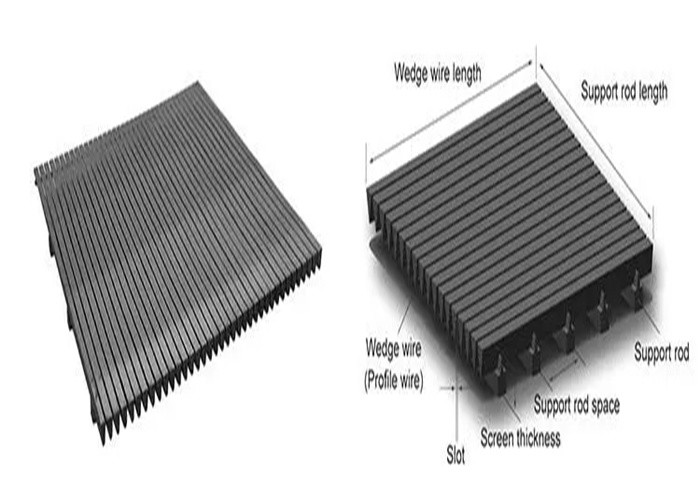

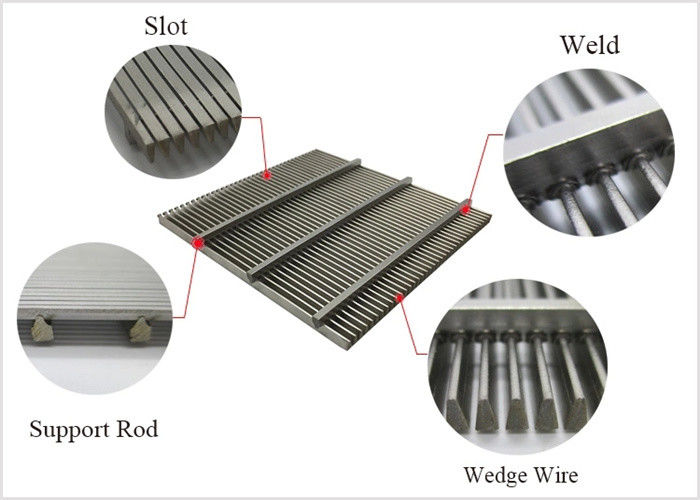

Wedge Wire
0.5x1.5 0.75x1.5 1x2 1.5x2 2x3 2x4 3x5
Support Rod

.5x2.5

2x3

1.5x2.5

2x3

1.5x2.5

2x3

1.8x2.5

2x3

2x3

2x4

3x5

3x6

3x10

4x7

2x4

3x5

3x6

3x10

4x7

5x6

3x5

3x6

3x10

4x7

5x6

5x8

End Finishing With the frame, without any frame, according to request
