| Place of Origin: | China |
|---|---|
| Certification: | SGS |
| Minimum Order Quantity: | 1 square meter |
| Price: | Discuss |
| Packaging Details: | the packing of the welded wire mesh panel is plastic & pallet or according to customer's requirementse meters |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 square |
| Name: | 304 Stainless Steel Welded Wire Mesh Fencing Panels Corrosion / Oxidation Resisting | Type: | Welded Mesh |
|---|---|---|---|
| Application: | Panels Corrosion | Technique: | Welded Mesh |
| Hole Shape: | Square Hole | Width: | 1m |
| Length: | 30m,Can Be Customized | Feature: | Corrosion Resistance,Easily Assembled,Heat Resistance,Acid Resistance |
| Usage: | Protection,Industry,Barbeque Baking,breeding | Color: | Silver |
| High Light: | 304 stainless steel welded mesh panels,304 stainless steel wire mesh panels,stainless steel welded mesh panels SGS |
||

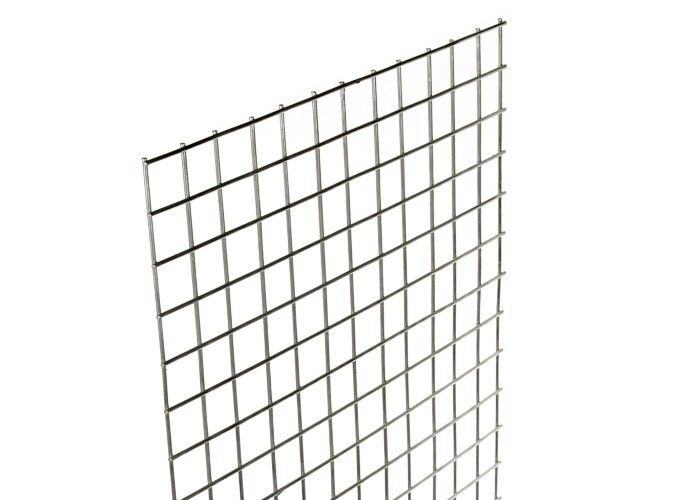

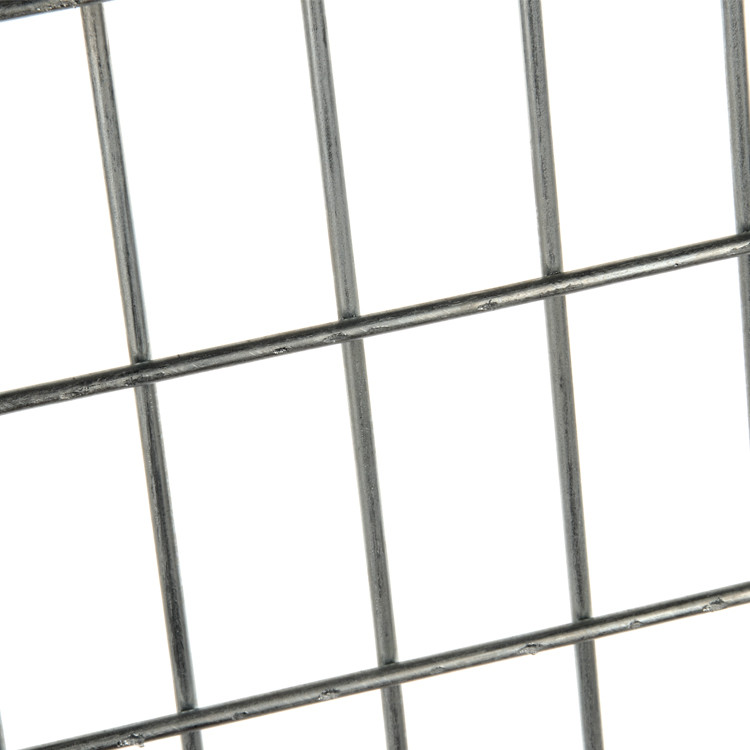

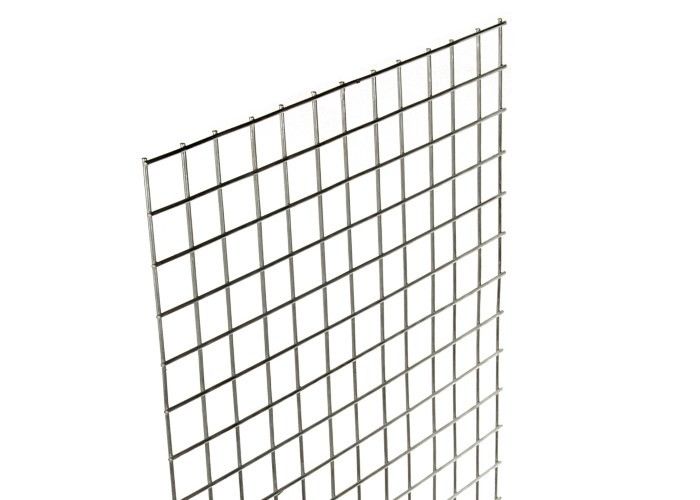

304 Stainless Steel Welded Wire Mesh Fencing Panels Corrosion / Oxidation Resisting
Materials: Stainless steel wire, Low carbon steel wire
Weaving: including galvanizing before or after welding, it is divided to hot dipped, electrical galvanizing, pvc coating, plastic soaked, special electric welded wire mesh
Surface treatment: Electro galvanized, Hot dipped galvanized, PVC coated
Property: It has the characteristics of corrosion resisting and oxidation resisting
Uses: It is used in industry, agriculture, building, transpor-tation, mine, court, lawn, breeding, for fence, decoration, machine protection etc.
| Specification of Welded Wire Mesh | ||||
| Opening | Wire Diameter | Width | electric galvanized before welded, | |
| In inch | In metric unit | |||
| 1/4" x 1/4" | 6.4 x 6.4mm | BWG24-22 | ||
| 3/8" x 3/8" | 10.6x 10.6mm | BWG22-19 | ||
| 1/2" x 1/2" | 12.7 x 12.7mm | BWG23-16 | ||
| 5/8" x 5/8" | 16x 16mm | BWG21-18 | ||
| 3/4" x 3/4" | 19.1 x 19.1mm | BWG21-16 | ||
| 1" x 1/2" | 25.4x 12.7mm | BWG21-16 | ||
| 1-1/2" x 1-1/2" | 38 x 38mm | BWG19-14 | ||
| 1" x 2" | 25.4 x 50.8mm | BWG16-14 | ||
| 2" x 2" | 50.8 x 50.8mm | BWG15-12 | ||
| 2” x 4" | 50.8 x 101.6mm | BWG15-12 | ||
| 4” x 4" | 101.6 x 101.6mm | BWG15-12 | ||
| 4” x 6" | 101.6 x 152.4mm | BWG15-12 | ||
| 6” x 6" | 152.4 x 152.4mm | BWG15-12 | ||
| 6” x 8" | 152.4 x 203.2mm | BWG14-12 | ||
| Note: Special specifications can be made according to customers requires. | ||||
Application
1.Guarding
2.Railings
3.Architectural
4.Ceiling Tiles
5.Partition Systems
6.Farm
6 x 6(1/4inch)mm square hole - Mouse protection
13 x 13(1/2inch)mm square hole - Fruit cages, bird protection, engineering uses
13 x 25(1/2*1inch)mm square hole - Bird protection, enclosures for small animals
20 x 20(3/4inch)mm square hole - Rat and squirrel protection
25 x 25(1inch)mm squarehole - Fox protection, cat and dog enclosures
50 x 50(2inch)mm square hole - Fox protection, dog enclosures
stainess steel welded wire mesh is widely made of Stainless steel201,202,304,304L,316,316L etc stainless steel wires.
With the precision automatic machine,the stainless steel welded wire mesh has the more advantages than the other material welded wire mesh:
Widely used in precision pressure filters, fuel filtration, vacuum filters, filter materials, aerospace, oil refining, medicine, sugar, petroleum, chemical, chemical fiber, rubber , tire manufacturing, metallurgy, food, health research and other industries.
1.Building construction,
2.Breeding dicks,duck,rabbits etc as cage or fence,
3.Protection in the mechanical equipment,
4.As protection fence in the speed way,stadium,etc.
