Name: | 304 316 316L/150 Inches Ring Mesh/Silver Stainless Steel Welded Wire Mesh Panel | Type: | Welded Mesh |
---|---|---|---|
Application: | Protecting Mesh | Technique: | Welded Mesh |
Weave Style: | Welded Wire Mesh | Wire Diameter: | 1mm-6mm |
Material: | Stainless Steel Wire | MOQ: | 1 Piece |
High Light: | 316l stainless steel welded wire mesh panel,150 inches wire mesh fence panels,1mm stainless steel welded wire mesh panel |

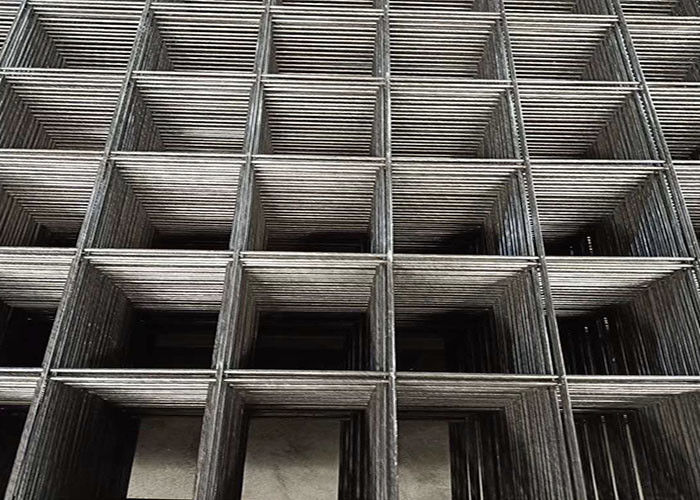

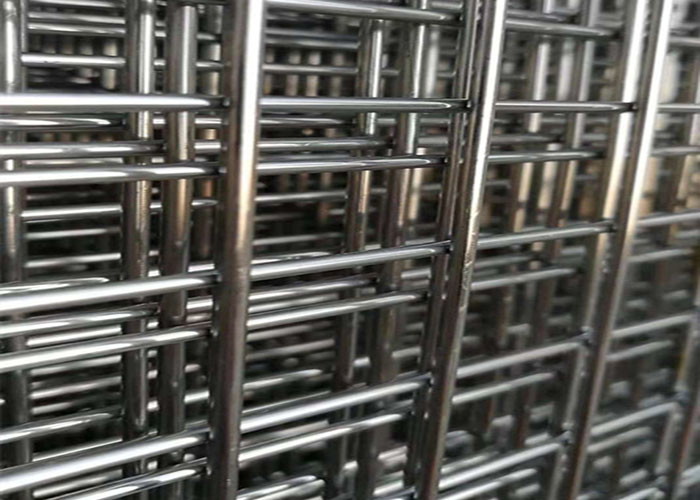

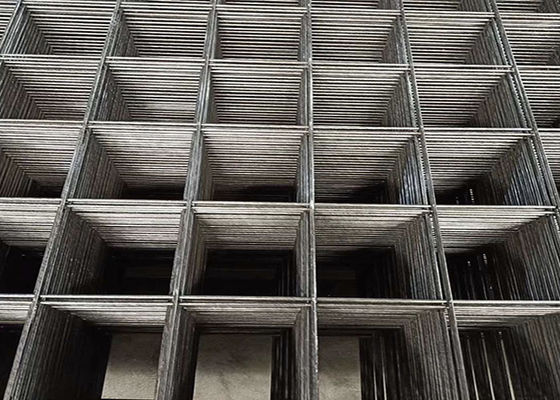

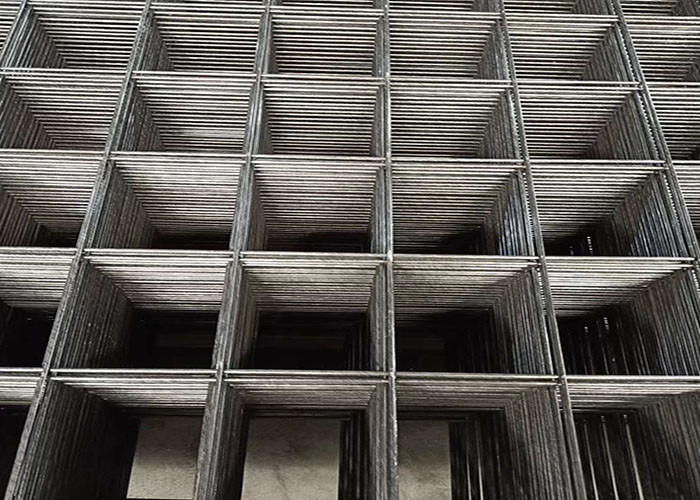

304 316 316L/150 Inches Ring Mesh/Silver Stainless Steel Welded Wire Mesh Panel
Product Descript
Welded wire mesh is constructed with two orthogonal wires that are joined together at their intersections using a resistance welding process to form a grid. The line wires of the grid are guided through the welder using a pattern board.
Welded wire mesh consists of perpendicular wire strands that are welded at each intersection. This results in a solid construction that maintains its shape when stressed, with larger open areas than typical woven wire mesh. Because the individual wires are welded at the joints, thinner wires can be used over larger spaces while remaining strong and stable. Materials include carbon steel, galvanized steel and stainless wire mesh.
Type 1: welded wire mesh rolls
Material | Low carbon steel wire Q195, Q235 |
Surface | Black wire, re-drawing wire, electroc galvanized, hot dipped galvanized wire, electro galvanized after welding, hot dipped galvanized after welding, PVC coated |
Wire Diameter | 0.4mm-3mm |
Hole (mesh) | 1/2'', 1'', 5/8'', 1/4'', 3/4'', 6/7'' (1''=25.4mm) |
Length | 15m, 20m, 25m, 30m, 50m |
Width | 3ft, 4ft, 90cm, 1.2m, 1.5m, 1.8m |
Package | waterproof paper+plastic film |
Type 2: welded wire mesh panels
Material | Low carbon steel wire Q195, Q235, stainless steel |
Surface | Black wire, re-drawing wire, electroc galvanized, hot dipped galvanized wire, electro galvanized after welding, hot dipped galvanized after welding, PVC coated |
Wire Diameter | 1mm-10mm |
Hole (mesh) | 2.5-25cm |
Length | ≤8m |
Width | 0.5-3m |
Package | pallet or nude packing |
Specifications
Material | Wire DIameter(mm) | Mesh Size(mm) | Width(M) | Length(M) |
SS304 | 2 | 20 | 1 | 2 |
SS304 | 2 | 50 | 1 | 2 |
SS304 | 2.5 | 25 | 1 | 2 |
SS304 | 2.5 | 30 | 1 | 2 |
SS304 | 2.5 | 40 | 1 | 2 |
SS304 | 2.5 | 50 | 1 | 2 |
SS304 | 2.5 | 20 | 1 | 2 |
SS304 | 3 | 40 | 1 | 2 |
SS304 | 3 | 30 | 1 | 2 |
SS304 | 3 | 25 | 1 | 2 |
SS304 | 3 | 20 | 1 | 2 |
SS304 | 3 | 50 | 1 | 2 |
SS304 | 3 | 60 | 1 | 2 |
SS304 | 4 | 30 | 1 | 2 |
SS304 | 4 | 50 | 1 | 2 |
SS304 | 4 | 60 | 1 | 2 |
SS304 | 4 | 80 | 1 | 2 |
SS304 | 4 | 100 | 1 | 2 |
SS304 | 5 | 30 | 1 | 2 |
SS304 | 5 | 40 | 1 | 2 |
SS304 | 5 | 50 | 1 | 2 |
SS304 | 6 | 50 | 1 | 2 |
SS304 | 6 | 100 | 1 | 2 |
Feature
Q: Can I place an order for some samples?
A: Yes.Of course.
You can order some samples to check the quality
Q: What's your MOQ?
A: If the products you ordered is in stock,MOQ will be flexible,otherwise,MOQ depend on your detailed specifications.
