| Place of Origin: | China |
|---|---|
| Certification: | CE |
| Minimum Order Quantity: | 1 PC |
| Price: | Negotiable |
| Packaging Details: | Pallet |
| Delivery Time: | 3 DAYS |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000PCS/DAY |
| Name: | Stainless Steel Iron Rebar Welded PVC And Galvanized Wire Mesh Fence Panels | Type: | Welded Mesh |
|---|---|---|---|
| Application: | Protecting Mesh | Technique: | Welded Mesh |
| Weave Style: | Welded Wire Mesh | Wire Diameter: | 1mm-6mm |
| Highlight: | 6mm stainless steel welded wire mesh panel,6mm galvanised wire mesh panels,galvanised stainless steel welded wire mesh panel |
||

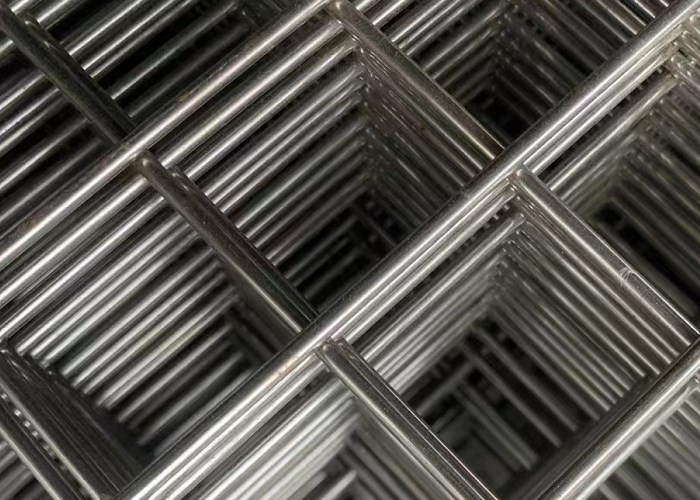

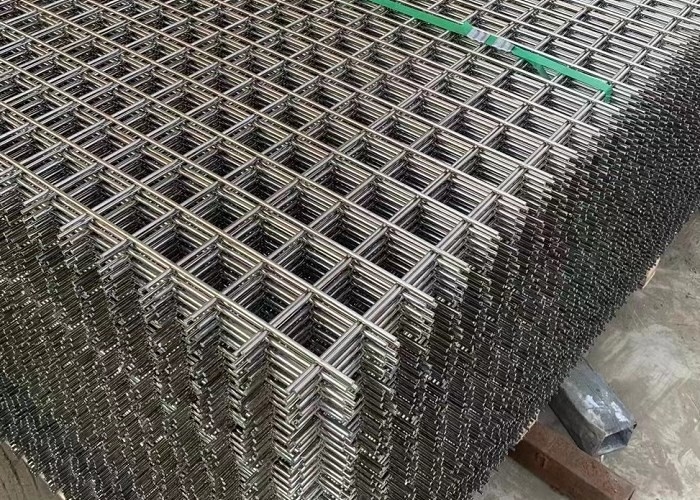

Stainless Steel Iron Rebar Welded PVC and Galvanized Wire Mesh Fence Panels
Welded wire mesh panel is a mesh made of high-quality low-carbon steel wire that has been straightened and cut and then welded by electric welding equipment. Welded wire mesh panel is widely used because of its simple structure, fast production, beautiful and practical, and easy to transport.
| Specification | ||
| Opening | Wire Diameter | |
| Inch | metric Unit(mm) | |
| 1"x1" | 25mmx25mm | 2.5mm,2.0mm,1.8mm,1.6mm |
| 2"x2" | 50mmx50mm | 2.5mm,2.0mm,1.8mm,1.6mm |
| 2"x3" | 50mmx70mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm |
| 2"x4" | 50mmx100mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.0mm |
| 2"x6" | 50mmx150mm | 6.0mm,5.0mm,4.0mm,3.0mm |
| 2"x8" | 50mmx200mm | 6.0mm,5.0mm,4.0mm,3.0mm |
| 3"x3" | 75mmx75mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm |
| 3"x4" | 75mmx100mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm |
| 4"x4" | 100mmx100mm | 6.0mm,5.0mm,4.0mm,3.0mm |
| 5"x5" | 125mmx125mm | 6.0mm,5.0mm,4.0mm,3.0mm |
| 6"x6" | 150mmx150mm | 6.0mm,5.0mm,4.0mm,3.0mm |
| Technical Note: | ||
|
1.Standard Panel Length:0.5m-5.8m;Width:0.5m-2.4m 2.Special size available at request |
||
