| Place of Origin: | China |
|---|---|
| Certification: | SGS |
| Minimum Order Quantity: | 1Roll |
| Price: | Negotiable |
| Packaging Details: | Welded wire mesh usually packed with plastic film, outside wrapped with waterproof paper. or according to customers requirement. |
| Delivery Time: | 3-5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Rolls per 3days |
| Name: | 4mm 1x2 Inch 2x2 Inch/Green/ Electro Galvanized Welded Wire Mesh | Color: | Silvery Green |
|---|---|---|---|
| Hole Shape: | Square | Processing Service: | Welded |
| Surface Treatment: | Galvanized | Usage: | Construction Wire Mesh |
| MOQ: | 1 Roll | Application: | Fence Mesh |
| High Light: | 4mm 2x2 welded wire mesh,4mm Welded Wire Mesh,2x2 Galvanised Steel Wire Mesh Sheet |
||

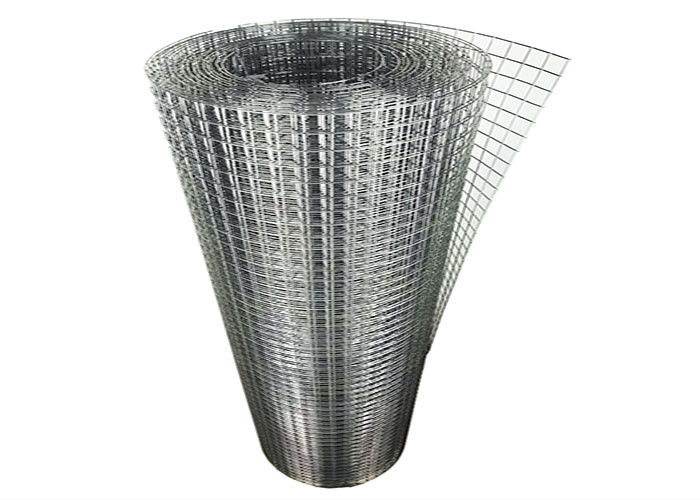

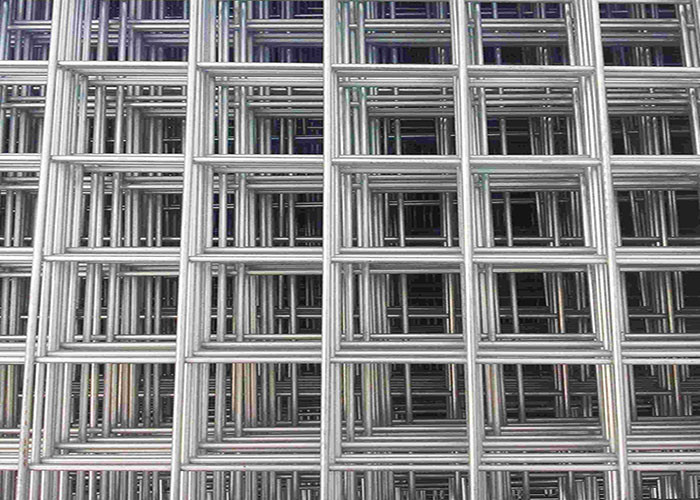

4mm 1x2 Inch 2x2 Inch/Green/ Electro Galvanized Welded Wire Mesh
Product Description
Welded wire mesh
Welded wire mesh, or welded wire fabric, or "weldmesh" is an electric fusion welded prefabricated joined grid consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing, this kind mesh can be used in many places, which is multifunctional.
Welded Mesh Roll Specification
| Mesh | Wire Diameter | ||
| In Inch | In MM | Wire Gauge | In MM |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22#-24# | 0.7mm-0.6mm |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19#-22# | 1.0mm-0.7mm |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16#-23# | 1.6mm-0.6mm |
| 5/8" x 5/8" | 16mm x 16mm | 18#-21# | 1.2mm-0.8mm |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16#-21# | 1.6mm-0.8mm |
| 1" x 1/2" | 25.4mm x 12.7mm | 16#-20# | 1.6mm-0.9mm |
| 1" x 1" | 25.4mm x 25.4mm | 14#-21# | 2.0mm-0.8mm |
| 11/2" x 11/2" | 38mm x 38mm | 14#-19# | 2.0mm-1.0mm |
| 1" x 2" | 25.4mm x 50.8mm | 14#-16# | 2.0mm-1.6mm |
| 2" x 2" | 50.8mm x 50.8mm | 12#-16# | 2.6mm-1.6mm |
Welded Mesh Panel Specification
| Opening/ Length | Opening/ Width | Wire Diameter | Roll Size | Material |
| 25-100mm | 10-100mm | 2mm | Width: 0.5-2.5m Length: 1-6.5m |
1) Electro Galvanized Wire 2) Electro Galvanized after Welded 3) Hot dipped Galvanized Wire 4) Hot dipped Galvanized after Welded 5) PVC Coated 6) Stainless Steel Wire |
| 25-100mm | 10-100mm | 2.5mm | ||
| 25-100mm | 10-100mm | 3mm | ||
| 25-100mm | 10-100mm | 3.5mm | ||
| 25-200mm | 10-200mm | 4mm | ||
| 50-200mm | 10-200mm | 5mm | ||
| 50-200mm | 20-200mm | 6mm | ||
| 50-200mm | 20-300mm | 7mm | ||
| 100-500mm | 30-300mm | 8mm | ||
| 100-500mm | 30-300mm | 9mm | ||
| 100-500mm | 30-300mm | 10mm | ||
| 4''x6'' | 101.6x152.4mm | BWG15-12 | ||
| 6''x6'' | 152.4x152.4mm | BWG15-12 | ||
| 6''x8'' | 152.4x203.2mm | BWG14-12 |
Technical Note:
1,Standard roll length: 30m;width: 0.5m to2m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.
FAQ
Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize in
different styles, and sizes in different brands, we also customize packaging box as per your requirements.
Q:What’s the MOQ?
A: MOQ is 10Rolls for standardized products; for customized products, MOQ should be negotiated
in advance. There is no MOQ for sample orders.
Q:How long is the lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 10-25 days.
Q:How to place orders?
A: 1. Email us the model, brand and quantity, consignee information, shipping way andpayment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
