| Place of Origin: | China |
|---|---|
| Certification: | SGS |
| Minimum Order Quantity: | 1Roll |
| Price: | Negotiable |
| Packaging Details: | Welded wire mesh usually packed with plastic film, outside wrapped with waterproof paper. or according to customers requirement. |
| Delivery Time: | 3-5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Rolls per 3days |
| Name: | Hot-Dipped 1/4 Inch/PVC Coated Galvanized Welded Wire Mesh | Color: | Silvery Green |
|---|---|---|---|
| Hole Shape: | Square | Processing Service: | Welded |
| Surface Treatment: | Galvanized | Usage: | Construction Wire Mesh |
| MOQ: | 1 Roll | Application: | Fence Mesh |
| High Light: | 1/4 Inch Galvanized Welded Wire Mesh,22 Gauge PVC Coated Welded Wire,1/4 Inch PVC Coated Welded Wire |
||

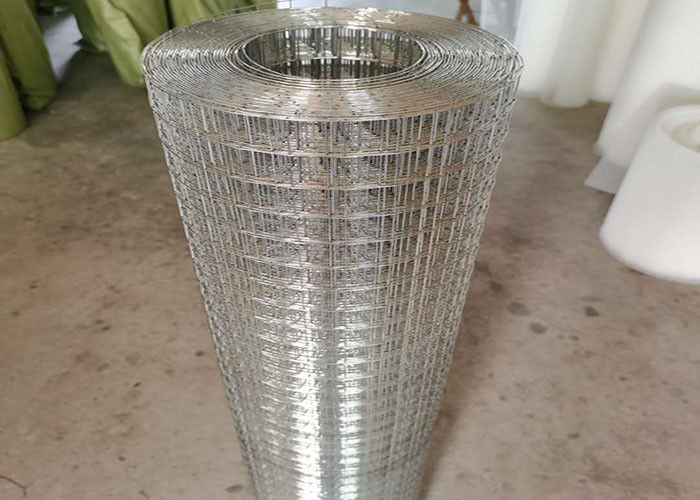

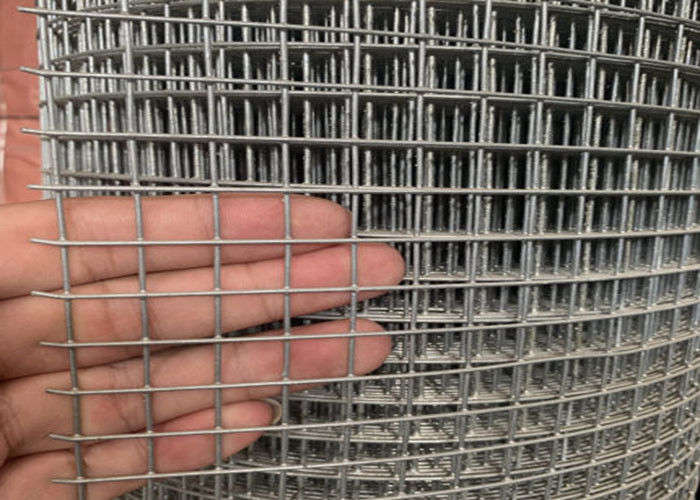

Hot-Dipped 1/4 Inch/PVC Coated Galvanized Welded Wire Mesh
Product Description
Welded wire mesh can be supplied in rolls,sheets or panels,and cut-to -size.
Wedled wire mesh offers better strength,intergration and longer work time compared with other wire mesh products.Welded wire mesh is durable,corrosion resisting and firm in structure.
Finish of welded wire mesh can be PVC coated ,sprayed,hot-dipped plated or electric-galvanized.
1.Material: Low carbon steel wire;galvanized wire,PVC coated.
2.Feature:Corrosion resistance, aging resistance, sunshine resistance and weather resistance.
3.Welding Type: Electro galvanized before welded wire mesh ,Electro galvanized after welded wire mesh,hot dip galvanized before welded wire mesh ,hot dip galvanized after welded wire mesh ,PVC coated welded wire mesh.
Welded Mesh Roll Specification
| Mesh | Wire Diameter | ||
| In Inch | In MM | Wire Gauge | In MM |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22#-24# | 0.7mm-0.6mm |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19#-22# | 1.0mm-0.7mm |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16#-23# | 1.6mm-0.6mm |
| 5/8" x 5/8" | 16mm x 16mm | 18#-21# | 1.2mm-0.8mm |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16#-21# | 1.6mm-0.8mm |
| 1" x 1/2" | 25.4mm x 12.7mm | 16#-20# | 1.6mm-0.9mm |
| 1" x 1" | 25.4mm x 25.4mm | 14#-21# | 2.0mm-0.8mm |
| 11/2" x 11/2" | 38mm x 38mm | 14#-19# | 2.0mm-1.0mm |
| 1" x 2" | 25.4mm x 50.8mm | 14#-16# | 2.0mm-1.6mm |
| 2" x 2" | 50.8mm x 50.8mm | 12#-16# | 2.6mm-1.6mm |
Welded Mesh Panel Specification
| Opening/ Length | Opening/ Width | Wire Diameter | Roll Size | Material |
| 25-100mm | 10-100mm | 2mm | Width: 0.5-2.5m Length: 1-6.5m |
1) Electro Galvanized Wire 2) Electro Galvanized after Welded 3) Hot dipped Galvanized Wire 4) Hot dipped Galvanized after Welded 5) PVC Coated 6) Stainless Steel Wire |
| 25-100mm | 10-100mm | 2.5mm | ||
| 25-100mm | 10-100mm | 3mm | ||
| 25-100mm | 10-100mm | 3.5mm | ||
| 25-200mm | 10-200mm | 4mm | ||
| 50-200mm | 10-200mm | 5mm | ||
| 50-200mm | 20-200mm | 6mm | ||
| 50-200mm | 20-300mm | 7mm | ||
| 100-500mm | 30-300mm | 8mm | ||
| 100-500mm | 30-300mm | 9mm | ||
| 100-500mm | 30-300mm | 10mm | ||
| 4''x6'' | 101.6x152.4mm | BWG15-12 | ||
| 6''x6'' | 152.4x152.4mm | BWG15-12 | ||
| 6''x8'' | 152.4x203.2mm | BWG14-12 |
Application
1) Roofing light sheet and sunshade for office building, department store, hotel, stadium, school, amusement center, hospital, ect.
2) Skylight, lighting for corridors, balcony, passages and subway entries, walkways.
3) Advertising lamp boxes, sign board.
4) Anti-riot shield, bullet resistant material
5) Conservatories, agricultural greenhouses, zoos, botanical gardens.
6) Industrial Roofing and Glazing
7) Swimming Pools roofing/cover/sheet
FAQ
Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize in
different styles, and sizes in different brands, we also customize packaging box as per your requirements.
Q:What’s the MOQ?
A: MOQ is 10Rolls for standardized products; for customized products, MOQ should be negotiated
in advance. There is no MOQ for sample orders.
Q:How long is the lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 10-25 days.
Q:How to place orders?
A: 1. Email us the model, brand and quantity, consignee information, shipping way andpayment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
