| Place of Origin: | China |
|---|---|
| Minimum Order Quantity: | 1Roll |
| Price: | Negotiable |
| Packaging Details: | Welded wire mesh usually packed with plastic film, outside wrapped with waterproof paper. or according to customers requirement. |
| Delivery Time: | 3-5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Rolls per 3days |
| Name: | 1/2x1/2 3/4 X 3/4 3/8 1x1 Inch Square Hole/Silver Green Galvanized Welded Wire Mesh | Color: | Silvery Green |
|---|---|---|---|
| Hole Shape: | Square | Processing Service: | Welded |
| Surface Treatment: | Galvanized | Usage: | Construction Wire Mesh |
| MOQ: | 1 Roll | Application: | Fence Mesh |
| High Light: | 1x1 Inch Galvanized Welded Wire Mesh,Square Hole Galvanized Welded Wire Mesh,1x1 galvanised steel mesh panels |
||

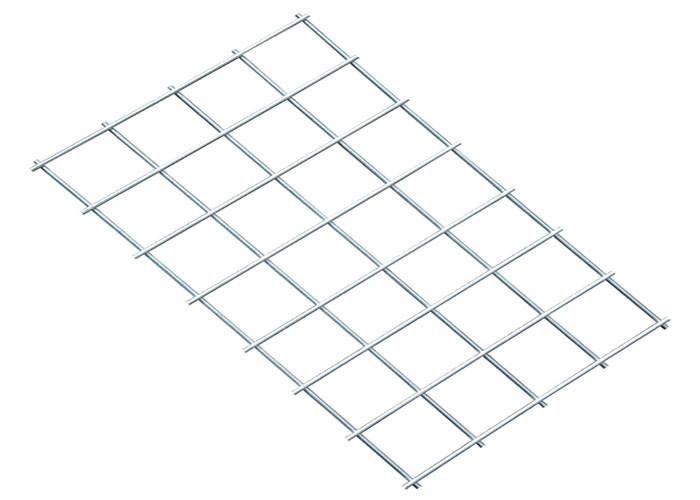

1/2x1/2 3/4 X 3/4 3/8 1x1 Inch Square Hole/Silver Green Galvanized Welded Wire Mesh
Product Description

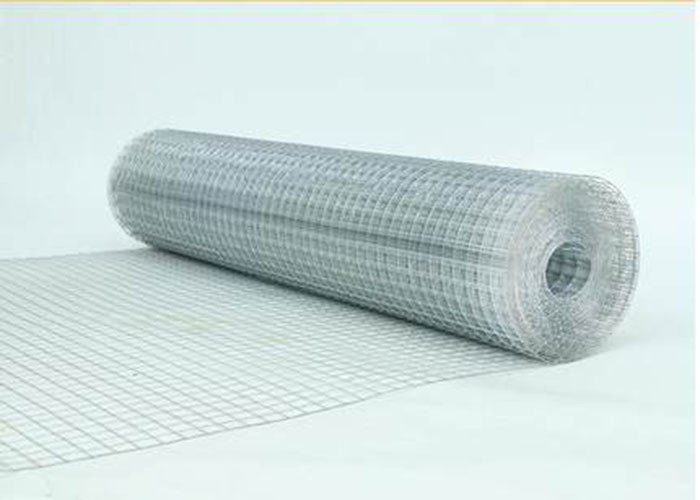

Welded Mesh Roll Specification
| Mesh | Wire Diameter | ||
| In Inch | In MM | Wire Gauge | In MM |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22#-24# | 0.7mm-0.6mm |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19#-22# | 1.0mm-0.7mm |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16#-23# | 1.6mm-0.6mm |
| 5/8" x 5/8" | 16mm x 16mm | 18#-21# | 1.2mm-0.8mm |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16#-21# | 1.6mm-0.8mm |
| 1" x 1/2" | 25.4mm x 12.7mm | 16#-20# | 1.6mm-0.9mm |
| 1" x 1" | 25.4mm x 25.4mm | 14#-21# | 2.0mm-0.8mm |
| 11/2" x 11/2" | 38mm x 38mm | 14#-19# | 2.0mm-1.0mm |
| 1" x 2" | 25.4mm x 50.8mm | 14#-16# | 2.0mm-1.6mm |
| 2" x 2" | 50.8mm x 50.8mm | 12#-16# | 2.6mm-1.6mm |

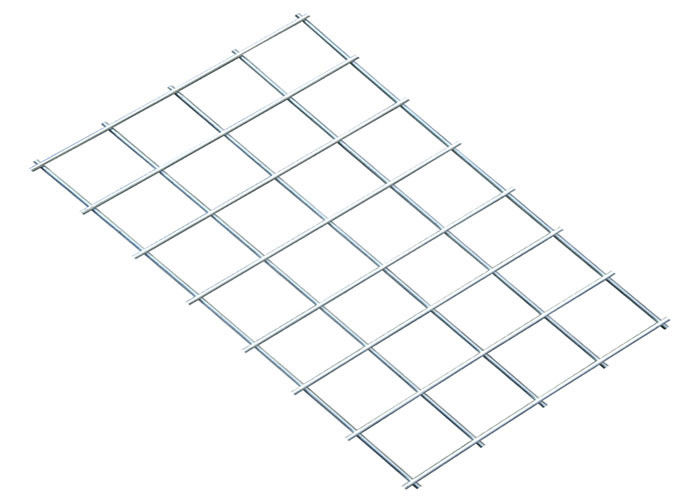

Welded Mesh Panel Specification
| Opening/ Length | Opening/ Width | Wire Diameter | Roll Size | Material |
| 25-100mm | 10-100mm | 2mm | Width: 0.5-2.5m Length: 1-6.5m |
1) Electro Galvanized Wire 2) Electro Galvanized after Welded 3) Hot dipped Galvanized Wire 4) Hot dipped Galvanized after Welded 5) PVC Coated 6) Stainless Steel Wire |
| 25-100mm | 10-100mm | 2.5mm | ||
| 25-100mm | 10-100mm | 3mm | ||
| 25-100mm | 10-100mm | 3.5mm | ||
| 25-200mm | 10-200mm | 4mm | ||
| 50-200mm | 10-200mm | 5mm | ||
| 50-200mm | 20-200mm | 6mm | ||
| 50-200mm | 20-300mm | 7mm | ||
| 100-500mm | 30-300mm | 8mm | ||
| 100-500mm | 30-300mm | 9mm | ||
| 100-500mm | 30-300mm | 10mm | ||
| 4''x6'' | 101.6x152.4mm | BWG15-12 | ||
| 6''x6'' | 152.4x152.4mm | BWG15-12 | ||
| 6''x8'' | 152.4x203.2mm | BWG14-12 |
Applications:used for poultry cage, egg basket, fence, drain, porch safeguard fence, mouse-prevention netting, mechanical guardrail cover, fence of poultry and vegetables, grid and shelf etc. There are two kinds, zinc-plated and plastic-coated.
FAQ
Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize in
different styles, and sizes in different brands, we also customize packaging box as per your requirements.
Q:What’s the MOQ?
A: MOQ is 10Rolls for standardized products; for customized products, MOQ should be negotiated
in advance. There is no MOQ for sample orders.
Q:How long is the lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 10-25 days.
Q:How to place orders?
A: 1. Email us the model, brand and quantity, consignee information, shipping way andpayment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
