Hot Dip 6.4mm Galvanized Welded Wire Mesh For Construction

Basic Information
Place of Origin: China
Certification: SGS
Minimum Order Quantity: 1Roll
Price: Negotiable
Packaging Details: Welded wire mesh usually packed with plastic film, outside wrapped with waterproof paper. or according to customers requirement.
Delivery Time: 3-5 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Rolls per 3days
Detail Information
Name: Hot Dip/silver/high Strength Galvanized Welded Wire Mesh Color: Silvery Green
Hole Shape: Square Processing Service: Welded
Surface Treatment: Galvanized Usage: Construction Wire Mesh
MOQ: 1 Roll Application: Fence Mesh
High Light:

Hot Dip Galvanized Welded Wire Mesh


6.4mm Galvanized Welded Wire Mesh


6.4mm hot dipped galvanized wire mesh

Product Description

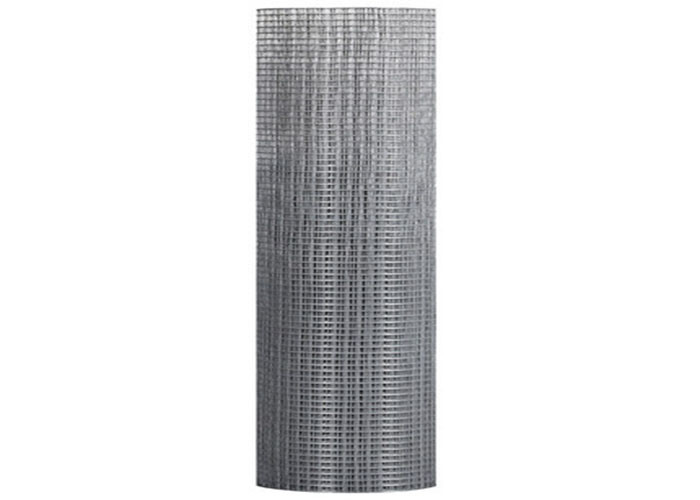

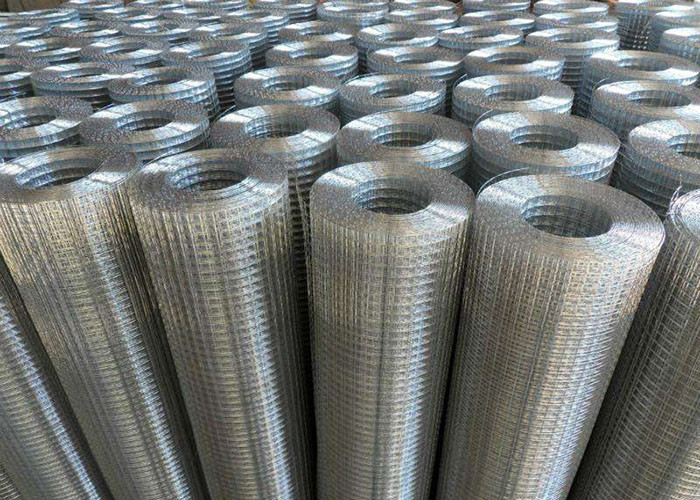

Hot Dip/silver/high strength Galvanized Welded Wire Mesh



Product Description



 Welded wire mesh

We supply welded wire mesh electro galvanized or hot dipped the forms of rolls or panels, for construction,

fences and other industrial enjoys the feature of corrosion resistance compared with plain welded wire mesh.

1. Material: Good quality mild steel wire or stainless steel wire
2. Production Method: Galvanized after welding, galvanized before welding.
3. Surface Treatment: Electro galvanized, hot dipped galvanized, PVC coated, or power coated.
4. Application: Animal enclosure, wire mesh fences for road, railway and agriculture, as guards for trees and plants

in horticulture industry.


Welded Mesh Roll Specification

Mesh Wire Diameter
In Inch In MM Wire Gauge In MM
1/4" x 1/4" 6.4mm x 6.4mm 22#-24# 0.7mm-0.6mm
3/8" x 3/8" 10.6mm x 10.6mm 19#-22# 1.0mm-0.7mm
1/2" x 1/2" 12.7mm x 12.7mm 16#-23# 1.6mm-0.6mm
5/8" x 5/8" 16mm x 16mm 18#-21# 1.2mm-0.8mm
3/4" x 3/4" 19.1mm x 19.1mm 16#-21# 1.6mm-0.8mm
1" x 1/2" 25.4mm x 12.7mm 16#-20# 1.6mm-0.9mm
1" x 1" 25.4mm x 25.4mm 14#-21# 2.0mm-0.8mm
11/2" x 11/2" 38mm x 38mm 14#-19# 2.0mm-1.0mm
1" x 2" 25.4mm x 50.8mm 14#-16# 2.0mm-1.6mm
2" x 2" 50.8mm x 50.8mm 12#-16# 2.6mm-1.6mm


Welded Mesh Panel Specification


Opening/ Length Opening/ Width Wire Diameter Roll Size Material
25-100mm 10-100mm 2mm Width: 0.5-2.5m

Length: 1-6.5m
1) Electro Galvanized Wire

2) Electro Galvanized after Welded

3) Hot dipped Galvanized Wire

4) Hot dipped Galvanized after Welded

5) PVC Coated

6) Stainless Steel Wire
25-100mm 10-100mm 2.5mm
25-100mm 10-100mm 3mm
25-100mm 10-100mm 3.5mm
25-200mm 10-200mm 4mm
50-200mm 10-200mm 5mm
50-200mm 20-200mm 6mm
50-200mm 20-300mm 7mm
100-500mm 30-300mm 8mm
100-500mm 30-300mm 9mm
100-500mm 30-300mm 10mm
4''x6'' 101.6x152.4mm BWG15-12
6''x6'' 152.4x152.4mm BWG15-12
6''x8'' 152.4x203.2mm BWG14-12


Hot Dip 6.4mm Galvanized Welded Wire Mesh For Construction 0Hot Dip 6.4mm Galvanized Welded Wire Mesh For Construction 1Hot Dip 6.4mm Galvanized Welded Wire Mesh For Construction 2Hot Dip 6.4mm Galvanized Welded Wire Mesh For Construction 3Technical Note:

1,Standard roll length: 30m;width: 0.5m to2m

2,Special sizes available at request

3,Packing: in waterproof paper in rolls. Custom packing available at request.

Hot Dip 6.4mm Galvanized Welded Wire Mesh For Construction 4


Q:Do you accept ODM&OEM orders?

A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize in

different styles, and sizes in different brands, we also customize packaging box as per your requirements.

Q:What’s the MOQ?

A: MOQ is 10Rolls for standardized products; for customized products, MOQ should be negotiated

in advance. There is no MOQ for sample orders.

Q:How long is the lead time?

A: The lead time for sample orders is 3-5 days, for bulk orders is 10-25 days.

Q:How to place orders?

A: 1. Email us the model, brand and quantity, consignee information, shipping way andpayment terms;

2. Proforma Invoice made and sent to you;

3. Complete Payment after confirming the PI;

4. Confirm Payment and arrange production.
