| Place of Origin: | China |
|---|---|
| Certification: | SGS |
| Minimum Order Quantity: | 1Roll |
| Price: | Negotiable |
| Packaging Details: | Welded wire mesh usually packed with plastic film, outside wrapped with waterproof paper. or according to customers requirement. |
| Delivery Time: | 3-5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Rolls per 3days |
| Name: | 8 Gauge 2x2 Pvc Coated/Hot Dipped/Silver GreenGalvanized Welded Wire Mesh | Color: | Silvery Green |
|---|---|---|---|
| Hole Shape: | Square | Processing Service: | Welded |
| Surface Treatment: | Galvanized | Usage: | Construction Wire Mesh |
| MOQ: | 1 Roll | Application: | Fence Mesh |
| High Light: | 2x2 Pvc Coated Welded Mesh,8 Gauge Galvanized Welded Wire Mesh,8 Gauge Pvc Coated Welded Mesh |
||

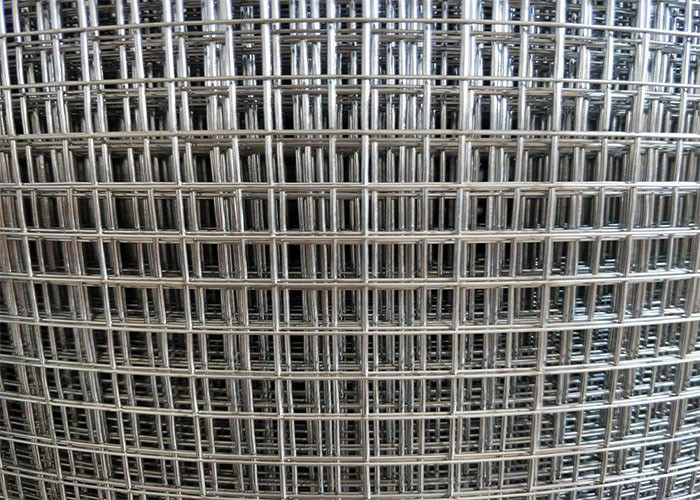

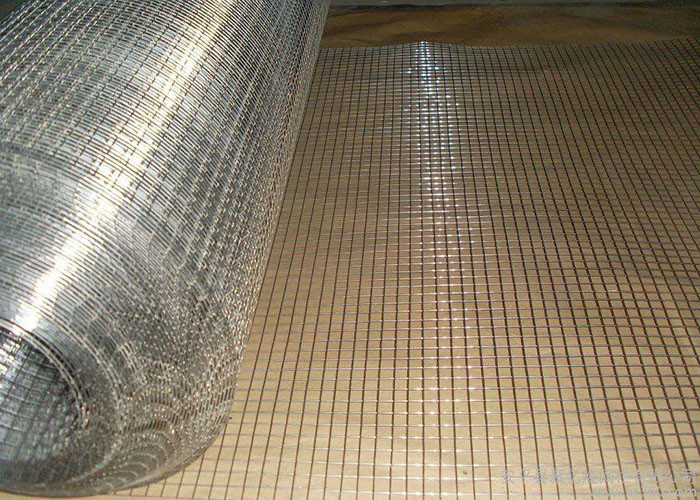

8 Gauge 2x2 Pvc Coated/Hot Dipped/Silver GreenGalvanized Welded Wire Mesh
Product Description
Hot-Dipped galvanized welded wire mesh panels/sheets or rolls are generally made up of plain steel wire. At the time of processing it goes through a hot zinc covering process. This type of welded mesh ware with square opening is ideal for animal cage structuring, fabricating the wire boxes, grilling, partition making, grating purposes and machine protection fencing. Hot-Dipped galvanized welded wire panels or rolls characteristics: flat and uniform surface, firm structure, good integrity and excellent good corrosion resistant.
This type of welded wire have two processing in manufacturing process, galvanizing welded mesh before or after welding. The galvanized welded wire mesh after welding is better than before welding for the corner of welding. With the hot-dipped galvanizing, welded wire can prevent corrosion in daily application.
Welded Mesh Roll Specification
| Mesh | Wire Diameter | ||
| In Inch | In MM | Wire Gauge | In MM |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22#-24# | 0.7mm-0.6mm |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19#-22# | 1.0mm-0.7mm |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16#-23# | 1.6mm-0.6mm |
| 5/8" x 5/8" | 16mm x 16mm | 18#-21# | 1.2mm-0.8mm |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16#-21# | 1.6mm-0.8mm |
| 1" x 1/2" | 25.4mm x 12.7mm | 16#-20# | 1.6mm-0.9mm |
| 1" x 1" | 25.4mm x 25.4mm | 14#-21# | 2.0mm-0.8mm |
| 11/2" x 11/2" | 38mm x 38mm | 14#-19# | 2.0mm-1.0mm |
| 1" x 2" | 25.4mm x 50.8mm | 14#-16# | 2.0mm-1.6mm |
| 2" x 2" | 50.8mm x 50.8mm | 12#-16# | 2.6mm-1.6mm |
Welded Mesh Panel Specification
| Opening/ Length | Opening/ Width | Wire Diameter | Roll Size | Material |
| 25-100mm | 10-100mm | 2mm | Width: 0.5-2.5m Length: 1-6.5m |
1) Electro Galvanized Wire 2) Electro Galvanized after Welded 3) Hot dipped Galvanized Wire 4) Hot dipped Galvanized after Welded 5) PVC Coated 6) Stainless Steel Wire |
| 25-100mm | 10-100mm | 2.5mm | ||
| 25-100mm | 10-100mm | 3mm | ||
| 25-100mm | 10-100mm | 3.5mm | ||
| 25-200mm | 10-200mm | 4mm | ||
| 50-200mm | 10-200mm | 5mm | ||
| 50-200mm | 20-200mm | 6mm | ||
| 50-200mm | 20-300mm | 7mm | ||
| 100-500mm | 30-300mm | 8mm | ||
| 100-500mm | 30-300mm | 9mm | ||
| 100-500mm | 30-300mm | 10mm | ||
| 4''x6'' | 101.6x152.4mm | BWG15-12 | ||
| 6''x6'' | 152.4x152.4mm | BWG15-12 | ||
| 6''x8'' | 152.4x203.2mm | BWG14-12 |
ABOUT PACKING
1.waterproof paper then PVC shrinked
2.PVC shrinked only
3.brown waterproof paper only
4.waterproof paper then metal/wooden pallet
5.plastic film then carton.
Also as your request.
FAQ
Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize in
different styles, and sizes in different brands, we also customize packaging box as per your requirements.
Q:What’s the MOQ?
A: MOQ is 10Rolls for standardized products; for customized products, MOQ should be negotiated
in advance. There is no MOQ for sample orders.
Q:How long is the lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 10-25 days.
Q:How to place orders?
A: 1. Email us the model, brand and quantity, consignee information, shipping way andpayment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
