| Place of Origin: | China |
|---|---|
| Certification: | SGS |
| Minimum Order Quantity: | 1Roll |
| Price: | Negotiable |
| Packaging Details: | Welded wire mesh usually packed with plastic film, outside wrapped with waterproof paper. or according to customers requirement. |
| Delivery Time: | 3-5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Rolls per 3days |
| Name: | PVC Coated/ 2x2 Galvanized 4x4 Prices Of 6x6 10/10/Galvanized Welded Wire Mesh | Color: | Silvery Green |
|---|---|---|---|
| Hole Shape: | Square | Processing Service: | Welded |
| Surface Treatment: | Galvanized | Usage: | Construction Wire Mesh |
| MOQ: | 1 Roll | Application: | Fence Mesh |
| High Light: | Construction Galvanised Wire Mesh Roll,10mm 4x4 Welded Wire Mesh,Construction 10mm galvanised mesh |
||

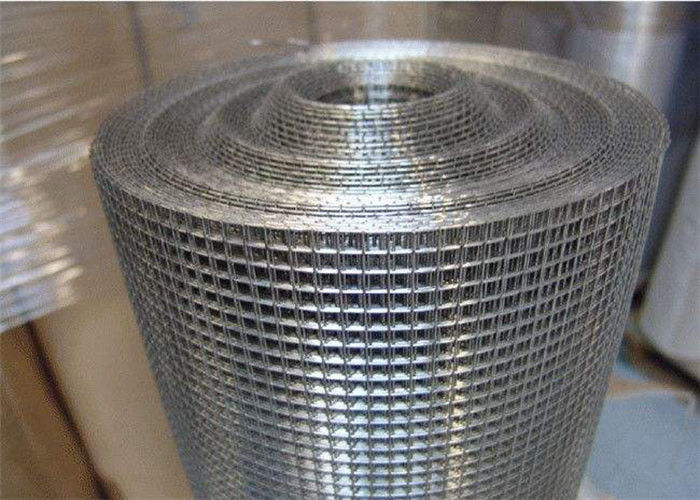

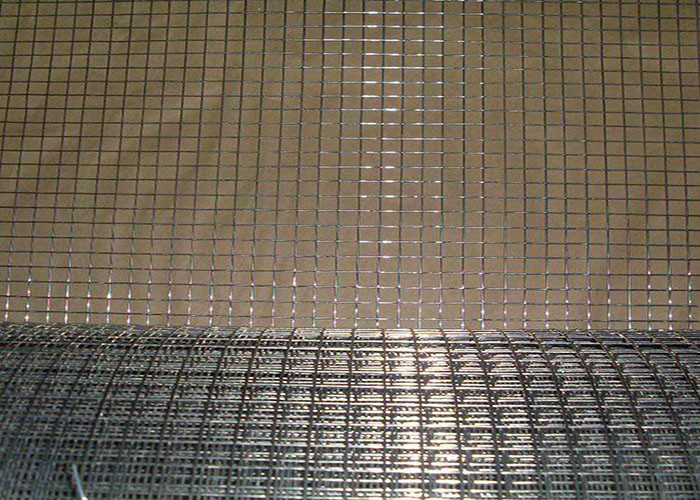

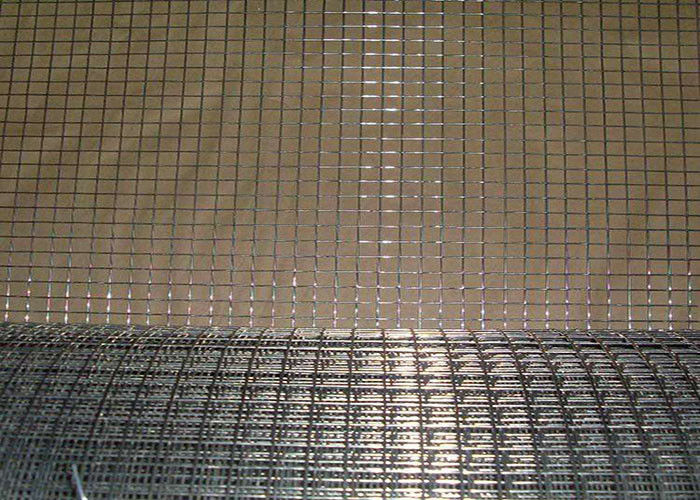

PVC coated/ 2x2 galvanized 4x4 prices of 6x6 10/10/Galvanized Welded Wire Mesh
Product Description
Welded wire mesh offer flat and uniform surface, firm structure and good integrity. It is the excellent anti-corrosion resistance among all the steel wire mesh products. So it is widly used in different fields. The welded wire mesh can be galvanized, PVC coated, or stainless steel welded wire mesh.
Galvanized welded wire mesh used for: Industry, agriculture, building, transportation and mining. Mainly used in wall building, concrete placing, kinds of fencing and decoration.
Welded Mesh Roll Specification
| Mesh | Wire Diameter | ||
| In Inch | In MM | Wire Gauge | In MM |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22#-24# | 0.7mm-0.6mm |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19#-22# | 1.0mm-0.7mm |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16#-23# | 1.6mm-0.6mm |
| 5/8" x 5/8" | 16mm x 16mm | 18#-21# | 1.2mm-0.8mm |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16#-21# | 1.6mm-0.8mm |
| 1" x 1/2" | 25.4mm x 12.7mm | 16#-20# | 1.6mm-0.9mm |
| 1" x 1" | 25.4mm x 25.4mm | 14#-21# | 2.0mm-0.8mm |
| 11/2" x 11/2" | 38mm x 38mm | 14#-19# | 2.0mm-1.0mm |
| 1" x 2" | 25.4mm x 50.8mm | 14#-16# | 2.0mm-1.6mm |
| 2" x 2" | 50.8mm x 50.8mm | 12#-16# | 2.6mm-1.6mm |
Welded Mesh Panel Specification
| Opening/ Length | Opening/ Width | Wire Diameter | Roll Size | Material |
| 25-100mm | 10-100mm | 2mm | Width: 0.5-2.5m Length: 1-6.5m |
1) Electro Galvanized Wire 2) Electro Galvanized after Welded 3) Hot dipped Galvanized Wire 4) Hot dipped Galvanized after Welded 5) PVC Coated 6) Stainless Steel Wire |
| 25-100mm | 10-100mm | 2.5mm | ||
| 25-100mm | 10-100mm | 3mm | ||
| 25-100mm | 10-100mm | 3.5mm | ||
| 25-200mm | 10-200mm | 4mm | ||
| 50-200mm | 10-200mm | 5mm | ||
| 50-200mm | 20-200mm | 6mm | ||
| 50-200mm | 20-300mm | 7mm | ||
| 100-500mm | 30-300mm | 8mm | ||
| 100-500mm | 30-300mm | 9mm | ||
| 100-500mm | 30-300mm | 10mm | ||
| 4''x6'' | 101.6x152.4mm | BWG15-12 | ||
| 6''x6'' | 152.4x152.4mm | BWG15-12 | ||
| 6''x8'' | 152.4x203.2mm | BWG14-12 |
Welded Wire Mesh Feature:
* Smooth mesh surface and bright luster
* Well-proportioned meshes
* Strong welded points
* High solid structure
* Corrosion-resisting
* Oxidation-resisting
FAQ
Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize in
different styles, and sizes in different brands, we also customize packaging box as per your requirements.
Q:What’s the MOQ?
A: MOQ is 10Rolls for standardized products; for customized products, MOQ should be negotiated
in advance. There is no MOQ for sample orders.
Q:How long is the lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 10-25 days.
Q:How to place orders?
A: 1. Email us the model, brand and quantity, consignee information, shipping way andpayment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
